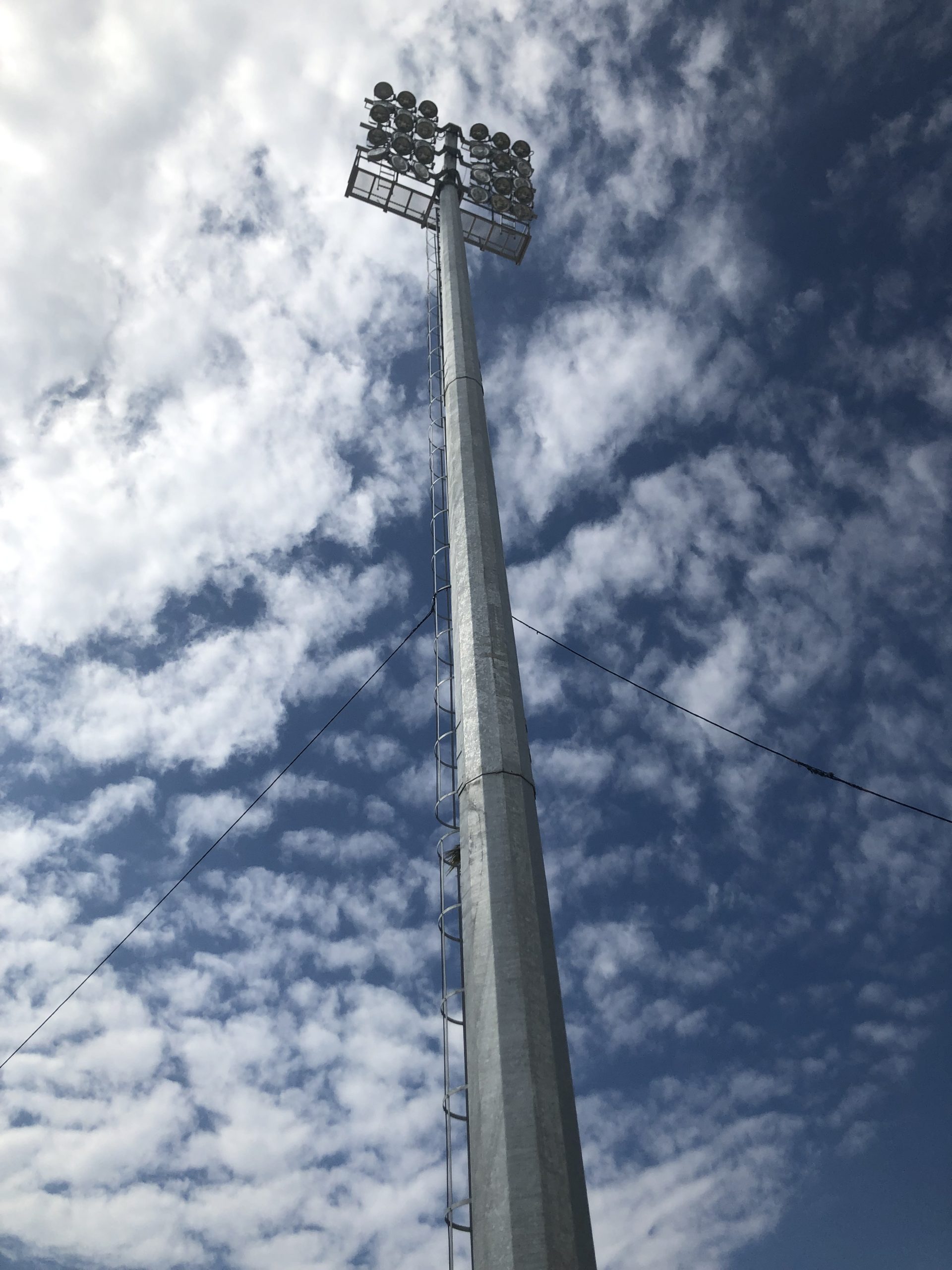

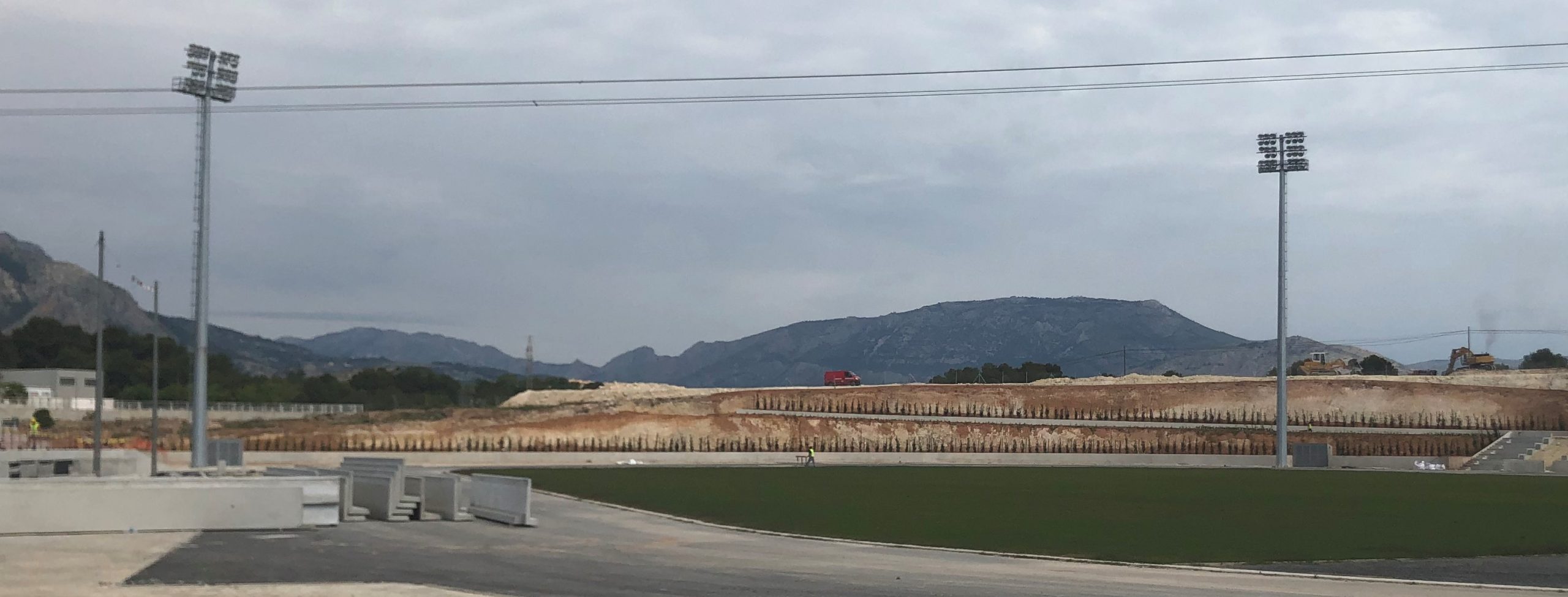

Metal supports made of sheet metal with a polygonal section for place platforms, crowns and other accessories.
Height: From 9 to 40 meters.
Heights equal to or exceeding than 13 meters are supplied in more than one piece that fit together.
Anchorage: Anchor plate for foundation by bolts.
Door for access to the floodlight junction box wiring.

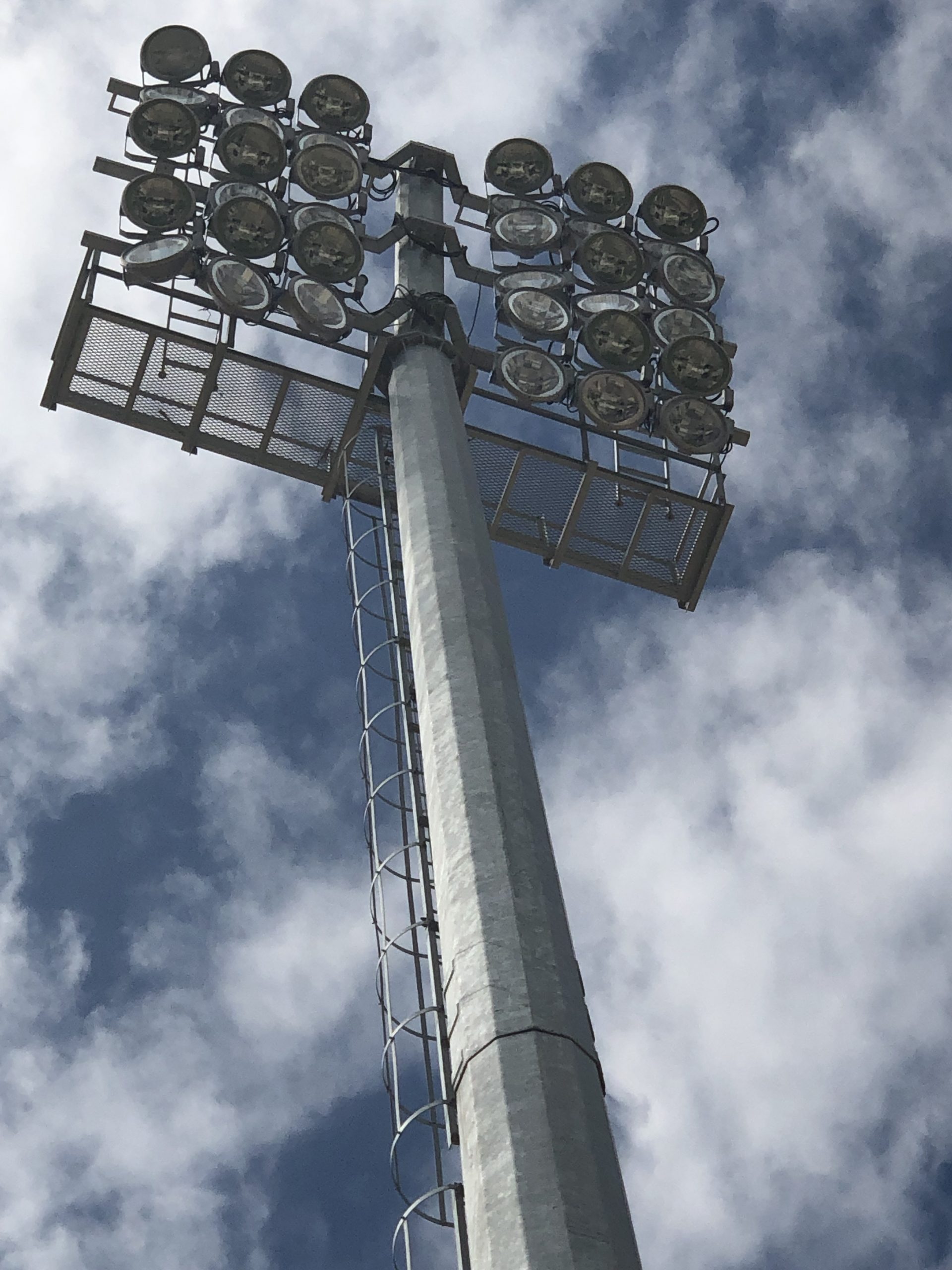

Projectors on platform. From 2 to 20 units.
Projectors on crown. Until 12 units.
Hot dip galvanized according UNE EN ISO 1461.
Optional accesories:
Modular ladder with a hoop handrail
Approved life line
Note: The calculation is made according standards RD2642/85; the wind loads on the crossbaror platform, floodlights and support structure, as well as the weight of the tubular structure have also been taken into account.
| H (m) | Nº projectors | Nº bolts | M y L |
|---|---|---|---|
| 16 | 4 | 8 | M-24×1500 |
| 16 | 6 | 8 | M-24×1500 |
| 16 | 8 | 8 | M-30×1500 |
| 18 | 8 | 8 | M-30×1500 |
| 18 | 12 | 8 | M-30×1500 |
| 18 | 16 | 8 | M-33×1500 |
| 20 | 12 | 12 | M-30×1500 |
| 20 | 16 | 12 | M-33×1500 |
| 20 | 20 | 12 | M-33×1500 |

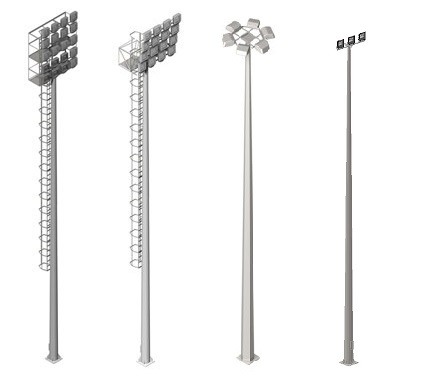

Tubular with inclined floodlights
