COLUMN
SHAFT : Truncated cone.
CONICITY: 12,5 ‰
SECTION: Circular.
MATERIAL: Carbon steel S 235 JR in compliance with UNE EN 10025.
Produced according to regulation UNE EN 40-5.
GALVANISING: Hot-dip complying with UNE EN ISO 1461.
FINISH: Option of painting with a colour chosen from the RAL chart.
DOOR: Even.

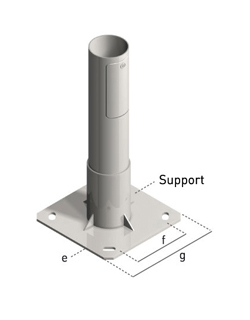

BASE: Flat plate, ring and reinforced brackets.
HEIGHT: Up to 12 m.
ACCESORIES: Aluminium ball crown.
COLUMN DIMENSIONS – MODEL NIGER
Note: Dimensions to verify before manufacturing.
| MODEL | H (m) | D (mm) | W1 (m) | W2 (m) | E (mm) | e (mm) | f (mm) | g (mm) | Bolts Ø y L (mm) |
|---|---|---|---|---|---|---|---|---|---|
| NIGER | 8 | 76 | 2 | 1.5 | 4 | 10 | 285 | 400 | M-20X700 |
| NIGER | 9 | 76 | 2 | 1.5 | 4 | 10 | 285 | 400 | M-20×700 |
| NIGER | 10 | 76 | 2 | 1.5 | 4 | 10 | 285 | 400 | M-22×700 |
| NIGER | 11 | 76 | 2 | 1.5 | 4 | 10 | 285 | 400 | M-22×700 |
| NIGER | 12 | 76 | 2 | 1.5 | 4 | 10 | 285 | 400 | M-22×700 |
