POST

SHAFT : Truncated cone.
CONICITY: 12,5 ‰
SECTION: Circular.
MATERIAL: Carbon steel S 235 JR.

Produced according to regulation UNE EN 40-5.

GALVANISING: Hot-dip complying with UNE EN ISO 1461.
FINISH: Option of painting with a colour chosen from the RAL chart.
DOOR: Even or projecting with frame.
BASE: Flat plate, ring and reinforced brackets or embedded plate.
HEIGHT: Up to 7 m.

Anchor Detail
MEASUREMENTS OF TRAFFIC LIGHT POST MODEL

MODELH
(m)
W
(m)
D
(mm)
E
(mm)
BoltsRecommended cimentation
(mm)
TRAFFIC LIGHT62.5/3.5883/4M-24×7001.100×1.100×1.500
TRAFFIC LIGHT72.5/3.5883/4M-24×7001.200×1.200×1.600

Cimentations= A x A x H
A= Width
H= Depth

COLUMN

SHAF: Cylindrical.
SECTION: Circular.
MATERIAL: Carbon steel ISO R-65.

Produced according to regulation UNE EN 40-5.

GALVANISING: Hot-dip complying with UNE EN ISO 1461.
FINISH: Option of painting with a colour chosen from the RAL chart.
DOOR: Even.
BASE: Flat plate o without plate.
HEIGHT: Up to 6 m.

ANCHOR DETAIL




Anchor Detail
Anchor Detail
Anchor Detail
Anchor Detail

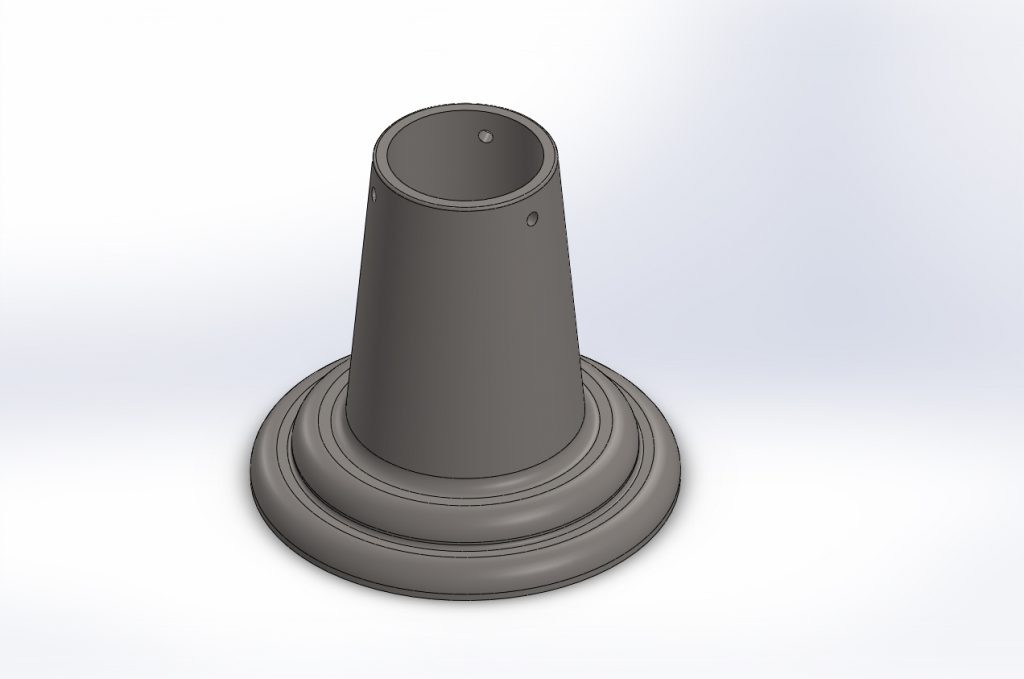

TRIMS




Anchor Detail
Anchor Detail
Anchor Detail
MEASUREMENTS OF TRAFFIC LIGHT COLUMN MODEL

MODELH
(m)
D
(mm)
BoltsRecommended cimentation
(mm)
TRAFFIC LIGHT2101/114M-16×350700x700x1000
TRAFFIC LIGHT2.4101/114M-16×350800x800x1000
TRAFFIC LIGHT4101/114M-16×350900x900x1100
TRAFFIC LIGHT5101/114M-16×3501000x1000x1200
TRAFFIC LIGHT*6101/114M-16×3501000x1000x1200

* Note: Different compositions are possible between the plates and trims, as well as including or not an access door and the possibility of making them without base plate, to embed in the ground.
